PAM

PLM Archive Manager version 0.3

Description

PAM has in fact two main functionnalities that correspond to two different modes : file system browsing and archive edition. In both modes, you can view the resource files (of types known by PAM).

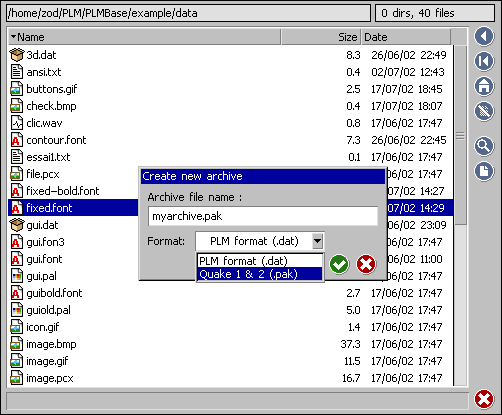

Main window

In the first mode, the list displays your file system contents. This way you can choose your resources, display them, then create or open an archive.

In the second mode, called archive mode, the list shows the content of the selected archive. This mode allows to add, remove, update and view files.

The column of icons on the right is updated when you change of mode.

Here is a list of all the resource types known by PAM:

  • Images: .PCX, .GIF, .BMP, .TGA
  • Fonts: .FONT (PLM format)
  • Palettes: .PAL (Gimp, Paint shop pro, raw rgb, raw bgr, PLM)
  • Texts: .TXT, .C, .H, .CPP, .HPP
  • Sounds: .WAV
  • Archives: .DAT (PLM format), .PAK (Quake engine format)
Technical data
  • Language: english only (very few words though),
  • Systems: Linux, Windows,
  • Video : 8, 16 or 32 bits (the best possible), window mode only (500 x 392).
  • Audio: 8 or 16 bits, 22 khz (usually).
  • Dependencies: PLMBase >= 0.19, SDL >= 1.2.
 Download

OSI certifiedOpen Source

Note that the following packages are released under the GNU GPL license (General Public License).

Package Size Date Notes
Linux binary 82.9 k 15 Oct 2004 TGZ, libPLMBase.so and libSDL.so not included
Windows binary 490.1 k 15 Oct 2004 Installer, PLMBase.dll and SDL.dll included
Source code 71.1 k 15 Oct 2004 TGZ, contains sources and data
